- BRAZEN 40W LED Batten,IP20,1.25m, Wide 160mm Base CCT Selectable 3000K, 4000K, 6500K, Emergency
RBZ4012CCT3E-01

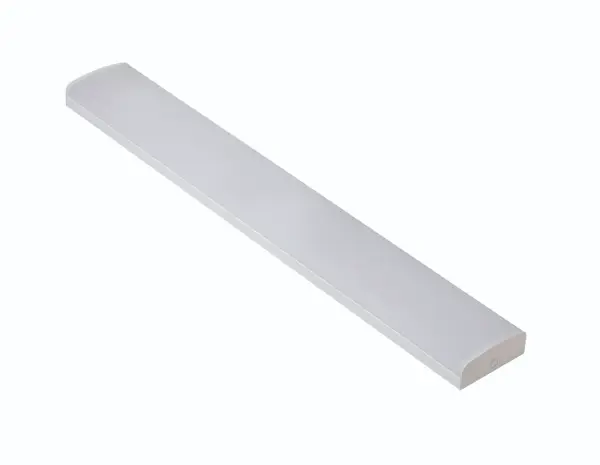

BRAZEN 40W LED Batten
IP201.25m Wide 160mm Base CCT Selectable 3000K 4000K 6500K Emergency
Features and benefits
Tech specs
Downloads
Accessories
How to videos
Case studies
- Suitable for use in offices, schools, health centres, care homes, corridors, stairwells
- LED replacement for 2x36W T8 fluorescent surface fittings
- Low profile steel housing with polycarbonate end caps and diffuser
- 160mm wide base - covers old luminaire footprint when retrofitting
- CCT selectable via 3 way switch inside the fitting enabling switching between 3000K, 4000K and 6500K
- Large screw terminals suitable for max 2.5mm² conductors
- High efficacy of 83-98lm/W
- Wide operating ambient temperature range of 0°C to +40°C
- 210-220lm in emergency
- 2 years battery warranty
- Suitable for switching by PIR, Microwave or Photocell
