- BRAZEN 40W LED Batten, IP20, 1.2m, Wide 160mm Base CCT Selectable 3000K, 4000K, 6500K
RBZ4012CCT3-01

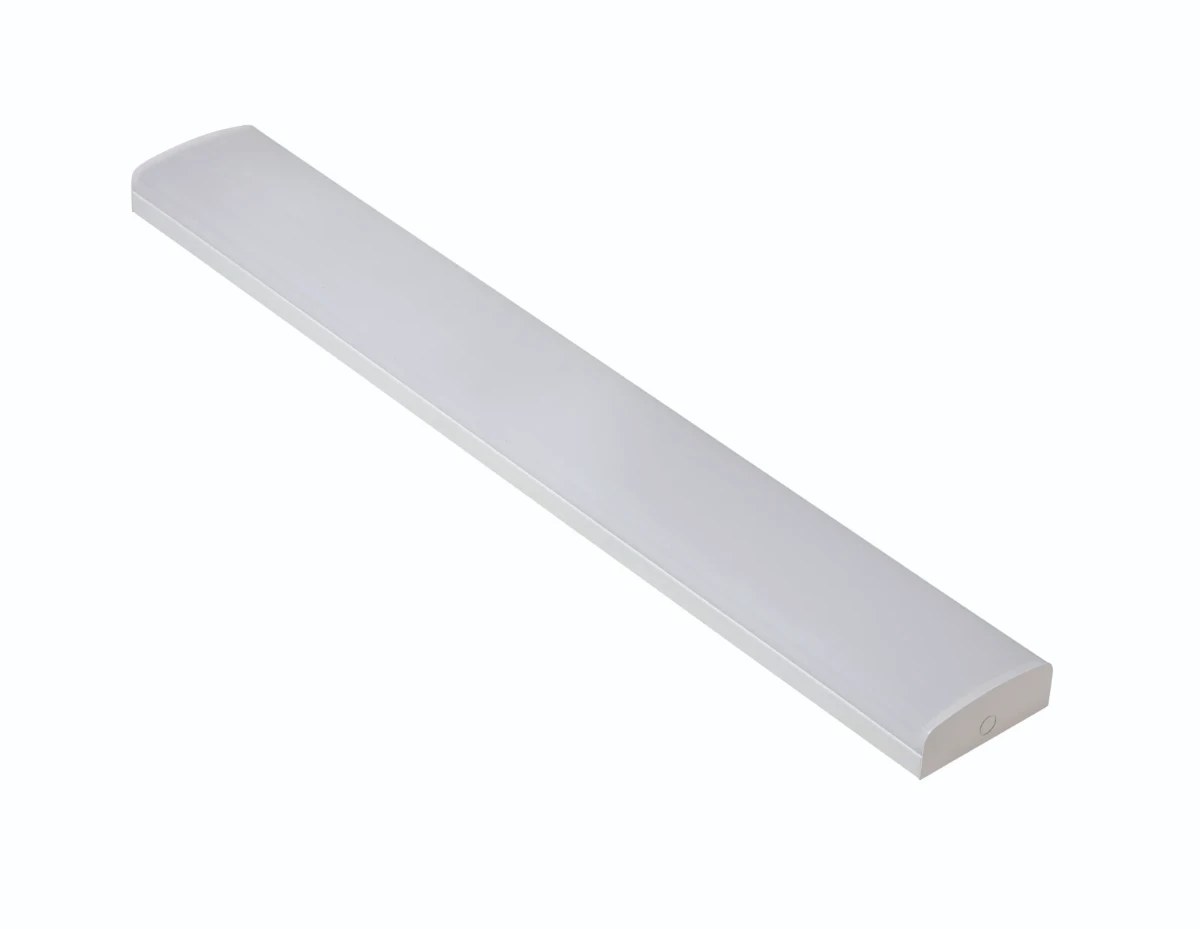

BRAZEN 40W LED Batten
IP20 1.2m Wide 160mm Base CCT Selectable 3000K 4000K 6500K
Features and benefits
Tech specs
Downloads
Accessories
How to videos
Case studies
- offices, schools, health centres, care homes, corridors, stairwells
- LED replacement for 2x36W T8 fluorescent surface fittings
- Low profile steel housing with polycarbonate end caps and diffuser
- 160mm wide base - covers old luminaire footprint when retrofitting
- CCT changing via 3 way switch inside the fitting enabling switching between 3000K, 4000K and 6500K
- Large screw terminal block allowing max 2.5mm² conductors
- High efficacy of 92-109lm/W
- Wide operating ambient temperature range of -20°C to +40°C
- Suitable for switching by PIR, Microwave or Photocell
