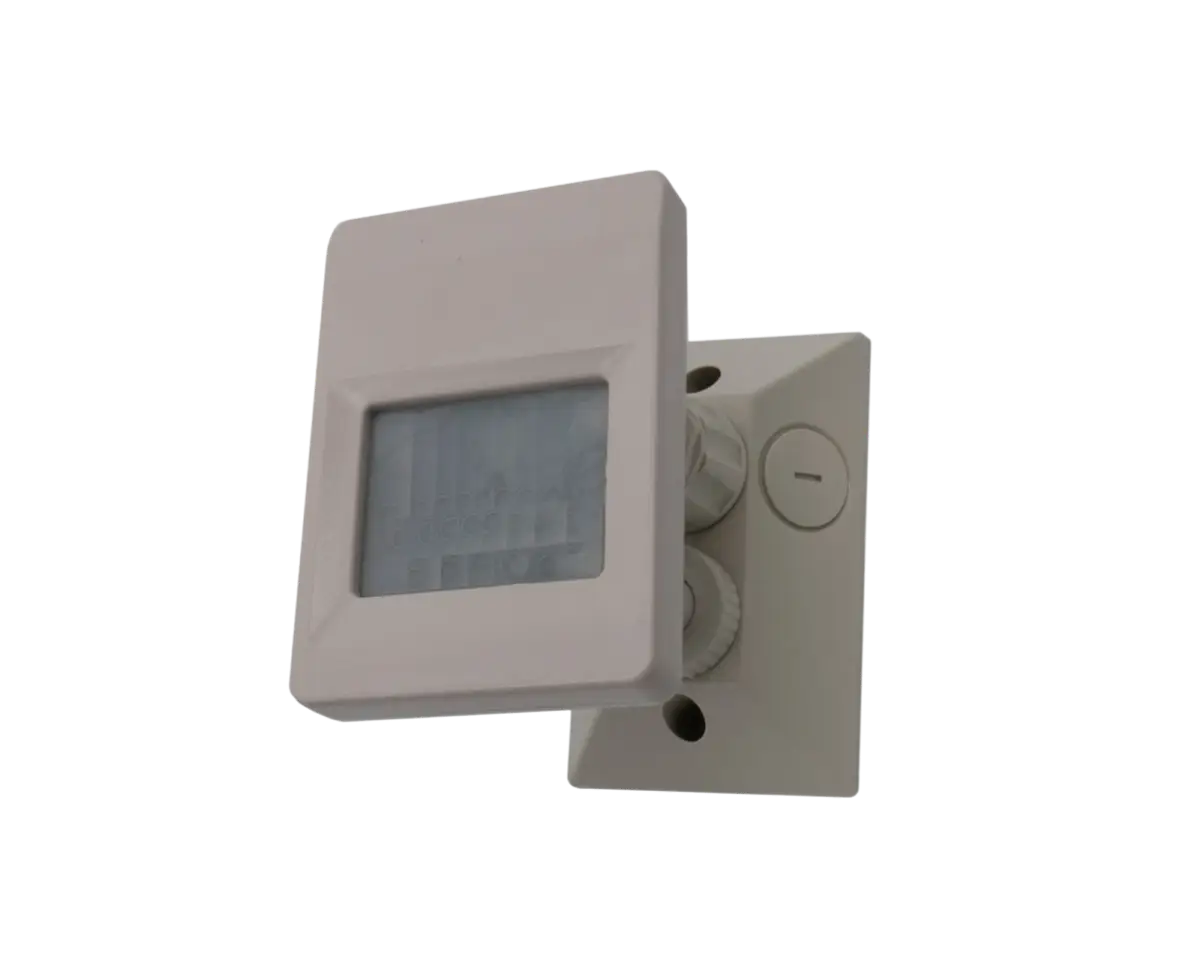

- PROTON, External Surface Mount Adjustable PIR, Manual Override, Grey
R110PIR3WM-24
PROTON
External Surface Mount Adjustable PIR Manual Override Grey
Features and benefits
Tech specs
Downloads
Accessories
How to videos
Case studies
- Suitable for surface indoor and outdoor applications
- Can be either wall or ceiling mounted
- Manual override facility
- Weatherproof IP66 housing
- 3-wire version allowing for continuity of neutral in the circuit
- Large terminals suitable for up to 2x1.5mm2 conductors
- Detection angle of 120º
- Adjustment range: 180º horizontal, 90º vertical
- Adjustable detection range, up to 18m
- Duration setting adjustable from 10 sec to 30 min
- Adjustable lux control level 3lx to 2000lx
- LED load max 500W
- Fluorescent load max 100W
- Resistive load max 2000W
