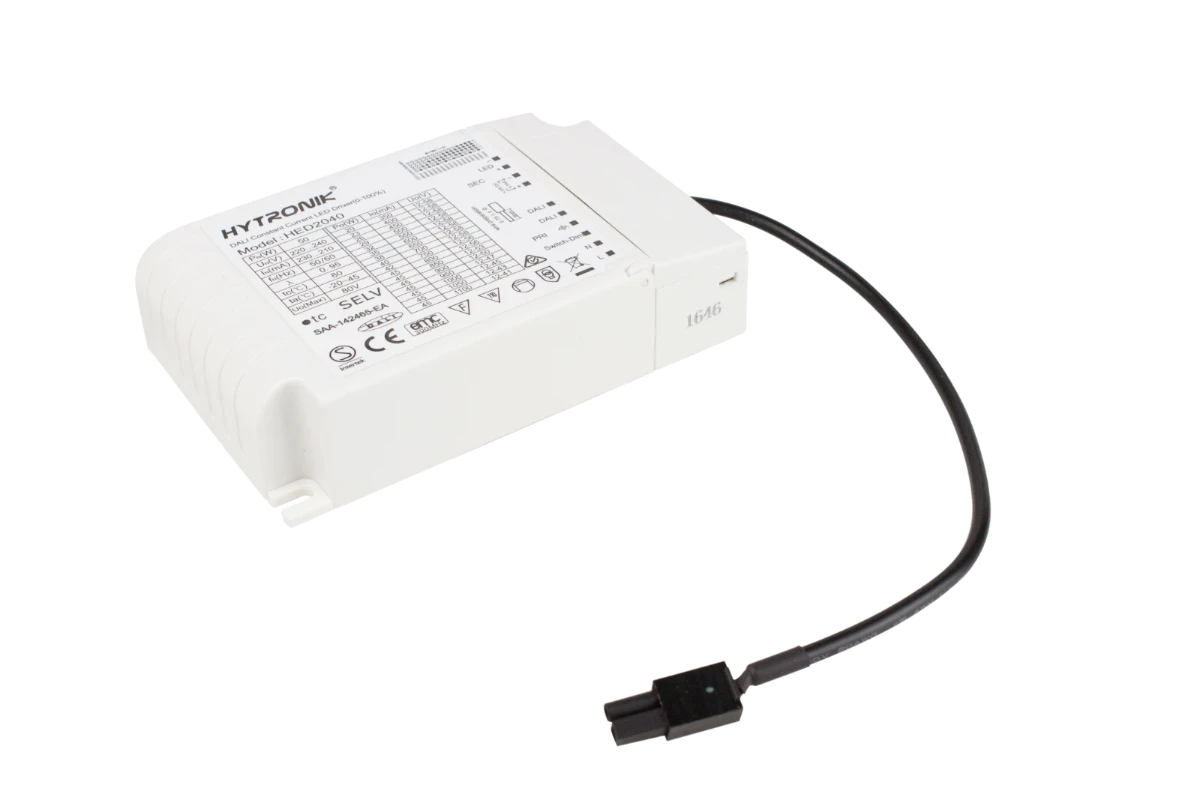

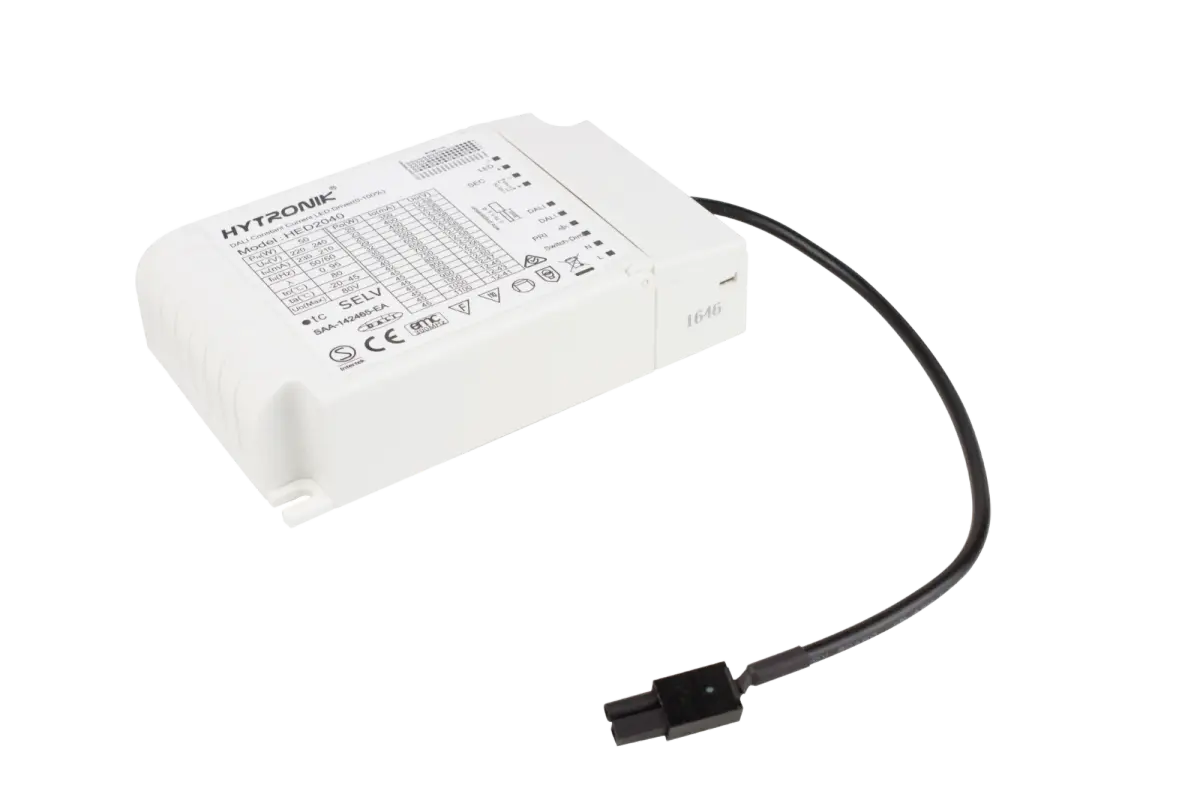

HED2040-D
Dali 1-10V
Switch Dim 40W LED Current Selectable Driver
Features and benefits
Tech specs
Downloads
Accessories
Brochures
How to videos
Case studies
- Constand current universal driver suitable for use with SPACE, ATMOS, ETERNITY and MORPH range of products
- High frequency output of 1kHz
- When dimmed above 30%, the driver is deemed flicker free
- Allows DALI, 1-10V or switch dim dimming
- Adjustable current output of 350-1100mA
- Up to 64 drivers can be controlled by switch-dim by simple programming
- Manual override function in DALI systems enabled by connecting switch dim at the same time allowing manual control of the circuit
- Output short circuit and over-heat protection with auto-reset.
- Wide operating ambient temperature range of -20°C to +40°C
